Distributed Fiber Optic Sensing (DFOS) Systems

Sensuron has become the trusted source for structural health monitoring solutions used to protect the most critical infrastructure.

Harness the Power of Distributed Fiber Optic Sensing

Sensuron’s groundbreaking Distributed Fiber Optic Sensing (DFOS) systems empower engineers with rugged and easy-to-use tools for structural testing, design optimization, structural health monitoring, thermal mapping, and 2D shape sensing tools.

Unlike point-based sensors which only capture data at discrete points, our DFOS systems transform a single fiber into thousands of virtual sensors, providing continuous and detailed data on strain, temperature, and more.

Sensuron Maximum Precision DFOS Systems

RTS125+

  • 8 simultaneously monitored channels, providing 16,000+ sensors.
  • The ruggedized RTS125+ is ideal for harsh environments where real-time, spatially continuous monitoring is needed.

Summit

  • 4 simultaneously monitored fiber optic sensing channels, providing 8,000+ strain/temperature sensors.
  • Software selectable spatial solutions as low as 1.6mm.

RTS250+

  • Choose between 8 simultaneously monitored fibers in 100 Hz mode or 4 fibers in 200 Hz mode
  • Spatial resolution down to 1.6 mm (with custom option; highest stock resolution is 6.3mm)

Static Strain

  • Low-cost sensing platform with 2000+ strain sensors on a single fiber.
  • Static Strain replaces traditional strain gauges to monitor multiple areas simultaneously, identifying strain changes accurately.

High Acquisition Rate FBG Interrogators

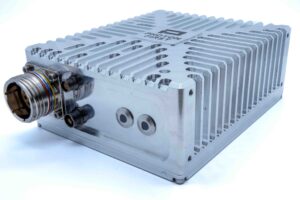

GTR FBG INTERROGATOR

  • Small size, low weight, low power consumption.
  • 1 optical channel with up to 8 FBG sensors.
  • 19 kHz sampling rate.

SGTR FBG INTERROGATOR

  • Small size, low weight, low power consumption.
  • Up to 8 optical channels with up to 8 FBG sensors each.
  • Scan rate over all channels 30 Hz, maximum sampling frequency (one channel) 19 kHz.

MIP3 FBG INTERROGATOR

  • Ultra-high wavelength reproducibility and accuracy enable precise measurements and asset monitoring.
  • Up to 7 channels with up to 8 FBG sensors each.
  • Scan rate over all channels 100 Hz, maximum sampling frequency (one channel) 19 kHz.

Industries Using Distributed Fiber Optic Sensing (DFOS) Systems

MEDICAL

Fiber Optic Shape Sensing Technology in Medical Applications

Meticulous precision in minimally invasive medical instruments

AEROSPACE

Fiber Optic Sensor in Aerospace Applications

Test, monitor, and analyze aerospace innovations for enhanced safety

ENERGY

Fiber Optic Sensors in Energy Applications

Real-time detection and monitoring to improve performance and efficiency

AUTOMOTIVE

Landrover Over Desert Sensuron BG

Test, monitor, and validate automotive designs to face new design challenges

CIVIL ENGINEERING

Fiber Optic Sensing in Civil Engineering and Mining Applications

Conduct design validation and ongoing structural monitoring

Unlike strain gauges and thermocouples, which only capture data at a discrete point, Sensuron’s interrogators monitor strain and temperature distributions by transforming an optical fiber into a spatially continuous sensor that performs like thousands of strain gauges or thermocouples installed adjacent to one another.

This allows our customers to capture significantly more data than traditional sensors, with less instrumentation – saving them measurable time and labor costs.

Learn more about Sensuron – Distributed Optical Sensor Systems

Distributed Optical Fiber Sensing (DFOS): Application Spotlight

Structural Health Monitoring

Continuous real-time monitoring of critical structures

Structural Design Optimization

Perform comprehensive model validation at thousands of points

Thermal Mapping Technology

Thermally map areas of interest with spatial resolution as low as 1.6mm

3D Shape Sensing

Visually monitor the continuous position of the sensor

Who We've Helped

Sensuron has a legacy in innovation. Formerly 4DSP’s fiber optic sensing division, we have over ten years of experience working directly and collaborating closely with NASA.

We continue supporting innovative companies and organizations across industries to solve problems ranging from aircraft structural integrity to surgical tool positioning.

Brands we work with include:

Logo of Sensuron's Customers

WHAT CUSTOMERS ARE SAYING ABOUT SENSURON PRODUCTS

"Sensuron's RTS125+ is a fabulous tool that we use to calculate our industrial partner’s large aeronautical structure deformed shapes and perform applied research in health monitoring. In addition to the high number of robust and accurate distributed strain measurements that the fibers allow us to acquire, Sensuron’s support team has always been very fast and efficient."
Thierry Klotz, PhD,
Aviation Systems Development and Integration Sector Lead, Centre Technologique en Aerospatiale (CTA), Canada
"I have been using Sensuron products since 2014 and am extremely satisfied with their service as well as the superior performance of their products."
Research Petrophysicist
Shell International
"Sensuron’s cutting-edge distributed sensing technology pushes the envelope for accuracy in solving real-world problems that, in some instances, is unachievable by any other technology."
NASA
"A single fiber allows us to replace thousands of strain gauges, saving us significant man-hours of effort on a single project and providing us with new insight we would not have gotten by using legacy sensing technology."
Thom Rollins
Northrop Grumman
“Sensuron’s high precision equipment and skilled application engineers were vital in supporting our research on water pipe infrastructure. The distributed strain sensing probe provided continuous readings, allowing us to develop models to characterize failure modes in distressed pipe. We’ve found no better alternative than the RTS125+.”
Martin Korz
PICA - Pipeline Inspection and Condition Analysis, Edmonton, AB Canada
